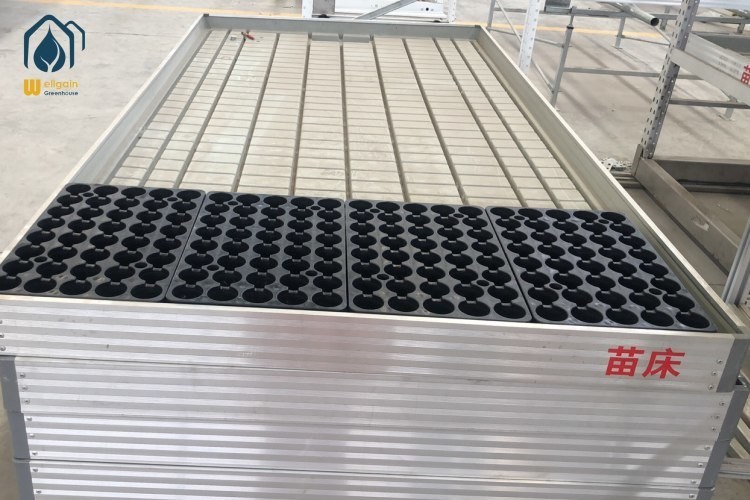

Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial

Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial

Brand Name: wellgain
Model Number: Ebb and Flow Rolling bench
Payment Terms: T/T
Supply Ability: 10000m2/month
Detail Information
Keyword:
Ebb And Flow Trays
Application:
Vegetable Fruits Flowers
Table Top Material:
ABS Plastic Tray
Table Rack Material:
Hot-dipped Galvanized Steel Pipe;aluminum Frame
Feature:
Stable Structure Easily Assembled
Length:
Can Be Customized
Width:
0.61m;1.22m;1.53m;1.65m, 1.7m;1.78m And Etc.
Usage:
Flower Vegetable Growing
Packaging Details:
FCL,LCL
Highlight:

Vegetable Ebb And Flow Trays

,

Hydroponics Greenhouse Growing Trays

,

Greenhouse Growing Trays Commercial

Product Description
Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial
Commercial Hydroponic System Grow Tables Ebb And Flow Rolling Bench Nursery Bed
The Ebb and Flow system is a reliable hydroponic solution known for its simplicity and cost-effectiveness. This system uses inert growing media to temporarily hold water and nutrients while anchoring plant roots. The solution alternately floods the growing area and then drains away, providing optimal conditions for plant growth.
With the Rolling Bench feature, the Ebb and Flow system can shift left or right using rollers on the support frame, maximizing greenhouse space utilization. Tables can be positioned side by side without gaps, with easy access when needed.
Technical Specifications
Product Name Greenhouse ebb and flow rolling/fixed bench
Seedling Tray ABS tidal seedling tray with UV protection (splicing tray)
Table Width Options 2.33ft (0.711m), 3ft (0.914m), 4ft (1.22m), 5ft (1.53m),
5.5ft (1.7m), 5.83ft (1.78m)
Custom lengths available for all widths
Complete Table Sizes 2ft × 4ft (0.61m × 1.22m)
4ft × 4ft (1.22m × 1.22m)
5ft × 11.15ft (1.53m × 3.4m)
5.4ft × 11.8ft (1.65m × 3.6m)
4ft × 8ft (1.22m × 2.44m)
5.5ft × 14.6ft (1.7m × 4.45m)
Table Height Standard 70cm (adjustable 8-10cm), custom heights available
Rolling Range Approximately 25-30cm from center to each side
Frame Material Aluminum alloy - lightweight, corrosion resistant, and durable
Product Components ABS tidal seedling tray, rolling shaft, door frame, aluminum alloy frame, handwheel, horizontal support, diagonal pull rod, and other accessories
Product Features
Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial 0
Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial 1
Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial 2
Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial 3
Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial 4
Support frame with adjustable leveling screws
Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial 5
Inlet/outlet filter for water recycling
Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial 6
Inlet and return water valves
Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial 7
Corner connector for frame assembly
Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial 8
Aluminum profile connector
Vegetable Ebb And Flow Trays Hydroponics Greenhouse Growing Trays Commercial 9
Anti-overturn safety hook
System Benefits
  • Reduced crop diseases: Maintains lower humidity levels, keeping leaves and flowers dry to minimize bacterial growth
  • Enhanced plant growth: Delivers oxygen-rich nutrient solution to roots for vigorous plant development
  • Improved crop quality: Enables uniform, synchronized irrigation for precise control and consistent results
  • Lower operational costs: Automated irrigation reduces labor requirements and associated expenses
  • Ergonomic design: Adjustable working height minimizes strain and back injuries for operators
  • Water conservation: Closed-loop system collects and recycles irrigation water, reducing waste and fertilizer costs
